Introduction

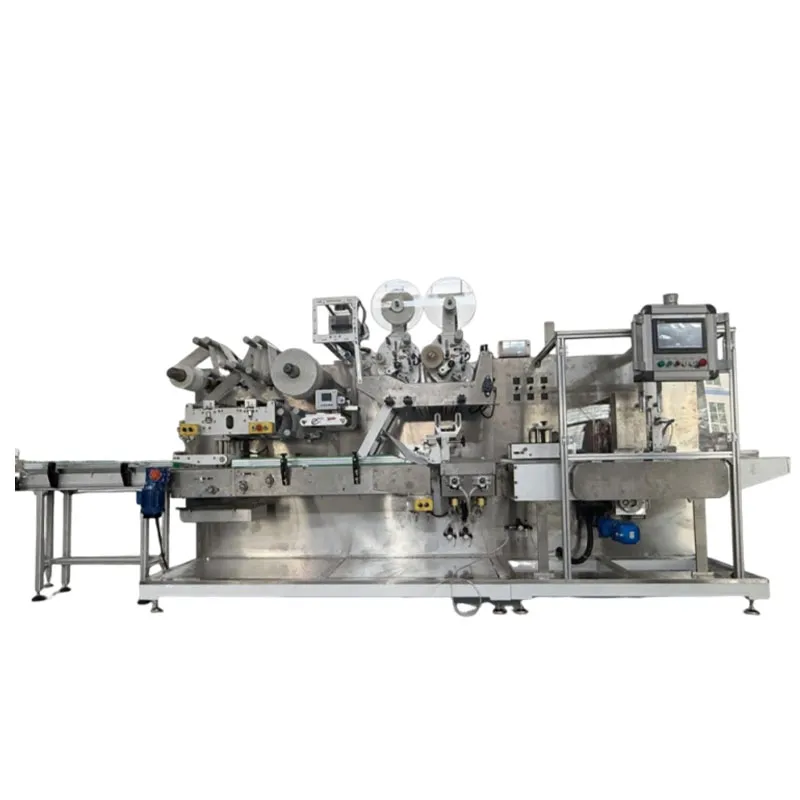

FM-WF100 Wet Wipe Packing Machine Device
Packing device of wet wipes production line
Specifications
Basic Main Technical Parameters
Packaging Materials:
Two-layer composite: OPP/PE (low-temperature heat sealing), BOPP/PE (low-temperature heat sealing), PET/PE (low-temperature heat sealing), OPP/CPP (low-temperature heat sealing), BOPP/CPP (low-temperature heat sealing), PET/CPP (low-temperature heat sealing).
Three-layer composite: OPP/PET/PE (low-temperature heat sealing), BOPP/PET/PE (low-temperature heat sealing), PET/OPP/aluminum-plated PE (low-temperature heat sealing), OPP/PET/aluminum-plated CPP (low-temperature heat sealing), BOPP/PET/aluminum-plated CPP (low-temperature heat sealing), PET/aluminum-plated CPP (low-temperature heat sealing), etc.
Film Core Diameter: 2" (76.2mm)
Film Roll Setting: 2 film rolls (one in operation, one on standby)
Film Specification: Maximum width 450mm, roll diameter <360mm
Packaging Dimensions: L110-500mm × W80-140mm × H15-100mm
Applicable Labels: Transparent labels, opaque stickers (optional metal aluminum foil labels)
Labeling Device Setting: 2 labeling devices (can operate simultaneously or switch automatically)
Label Dimensions: L50-150mm × W20-90mm
Tear Notch Dimensions: L10-70mm × W10-50mm
Design Speed: 100 packs/minute
Production Speed: 40-90 packs/minute (depending on material specification and thickness)
Working Voltage: 3-phase 5 wires, AC380V, 50/60Hz
Power: 28KW
Air Consumption: 0.6-0.8Mpa
Machine Dimensions: L5045mm × W1211mm × H2116mm
Total Machine Weight: Approximately 2T
Electrical Components: 8 Delta servos
System: Delta system
HMI Control
Process Parameter Recipe Storage: Facilitates specification change, retrieval and modification
Low-Material Alarm & Shutdown on Material Breakage
Date Marking: Dikai ink wheel coding
1. What is your advantage of your company in hygiene machinery field?
A: We are professional company in hygiene machinery field, not only technical provide, but also we have management system, such like loading side, waste prevention side, and so on.
2. Why we choose you?
A: Our mission is, one station service, create value for you. We can help you to start business, from raw material to machinery, to management system.
3. What is your delivery date ?
A: The delivery date is 120 days after receiving the deposit, and receipt
of payment.
4. What is your first order payment terms ?
A: 30% deposit in advance and 70% balance before shipment.
5. Where is your factory located? How can I visit it.
A:Our factory is based in Quanzhou city,Fujian province,China
You can fly to Jinjiang air port, we will pick you up.
