Introduction

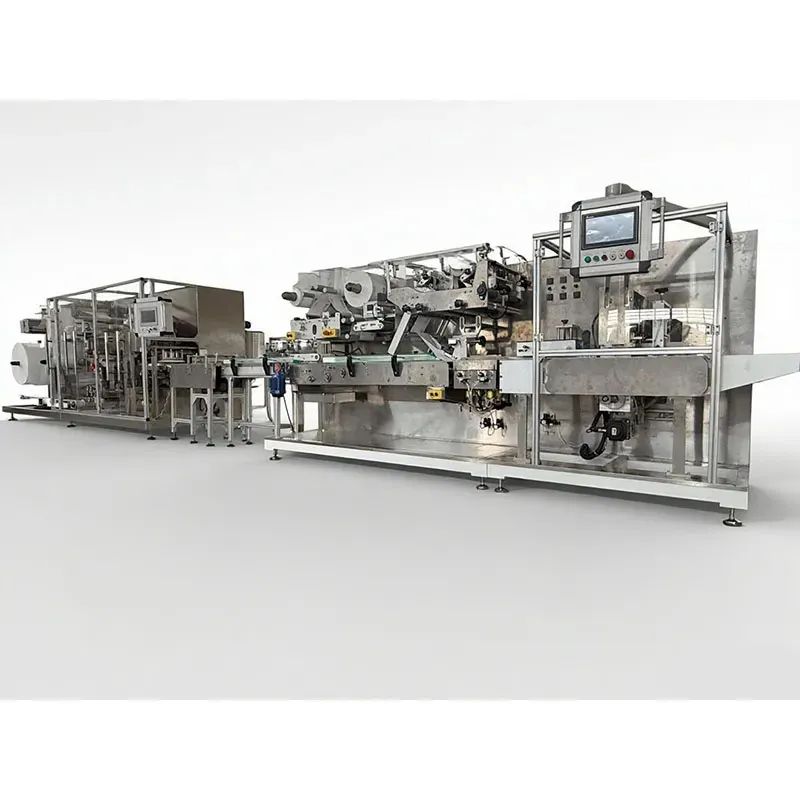

FM-PL20 Linear Double Row Wet Wipes Full Servo Making Machine 40-90packs/min. 5-30pcs/pack
Production Process:
Non-woven fabric automatic unwinding → Automatic web joining → Constant tension control → Sub- web folding → Fabric traction feeding → Quantitative humidification and cutting → Folding → Stacking counting → Double-row folded output → Flatbed feeding → Automatic two-pass merging → Automatic packaging machine film unwinding → Automatic hole punching → Automatic labeling (double labeling) → Heat sealing and cutting (back seal + cross seal) → Automatic corner insertion → Product air compression → Finished product output
Specifications
Key Device Parameter
1. Production speed: Maximum speed of 100 packages/min or 1200 pieces/min; stable speed of 10 pieces at 95- 100 packages/min, and stable speed of 20 pieces at 55-60 packages/ min.
2. Raw material dimensions (mm): (130-210)*2*φ 1200mm (width* diameter) single roll width; Unfolded dimensions (mm): (130-210)*(140-210) (width* length); Folded dimensi- ons (mm): (50-100)*(70-105) (width* length); Double-folded
3. Addition ratio: 2.5–5 times (weight of dry nonwoven fabric × multiplier)
4. Folding method: Z-shaped, N-shaped, C-shaped
5. Applicable base materials: Spunbond nonwoven fabric, biodegradable dispersible materials, wet toilet paper, etc.
6. Base paper weight: 35-80 g/㎡
7. Master roll specifications: maximum width 210 mm, diameter 1200 mm, 2 × 140-210 mm
8. Parent scroll diameter: 3" International Standard, i.e. 76.2 mm
9. Master roll quantity: 2 twin-fed base papers (one in operation, one standby for automatic transfer)
10. Automatic shutdown and alarm notification for equipment failure
11. Material of components in contact with chemical solutions: SUS304 (excluding belts), liquid injection spray pipe material: SUS316L
12. Pneumatic components: Yadeke, SMC
13. Key bearings: SKF/NSK/TNT
14. Flat belt: PU gemstone pattern
15. Synchronous belt: Gates, Magotti (Italy), Samsung (Japan)
16. Automatic Detection and Removal of Metal Aluminum Foil Tape in Nonwoven Fabric
17. Human-machine interface (touchscreen)
18. Human-machine interface: 10-inch display showing real-time machine speed, with Chinese/ English operation platform
19. Data recording for production output and formula storage function;
20. Software, check and repair I/O monitoring interface
21. Product SKU information storage feature
22. The human-machine interface enables operational control of machine speed
23. Unrollable belt: Flat belt with gemstone-patterned guide strips, made of food-grade PU material
24. Unwinding tension control: Constant tension automatic control
25. Folding width: 60- 105mm. For specifications beyond this range, please use a different folding plate.
26. Folding style: Z-shaped, long tail Z-shaped. Other styles require a dedicated folding plate.
27. Style transformation: Adjust fold style
28. Traction control: servo motor
29. Traction conveying speed: 130 m/min, maximum 140 m/min
30. Cutting length of the body: 140–210 mm, folding length: 70–105 mm
31. Stacking plate count: 5-30 plates (maximum range)
32. Stacking height: Maximum 60mm
33. Folding speed: Up to 1200 sheets per minute
34. Blade material: Tungsten steel base blade
35. Main motor for the cutting blade: Servo motor 3.0 KW
36. Humidification range: 2.0-5.0 times, liquid dosage: 20-200g per pack, screen-set flow meter for measurement and control
37. Filtration screen for liquid addition: 240 mesh (61 μm)
38. Liquid filling control: LCD screen settings
39. Filling tube: SUS316 L material
40. Flowmeter: Hygienic-grade glass rotor, 0- 16 L/min
41. DN8 medical silicone tubing, with two liquid addition methods: spray and immersion
42. Vertical direct drive mode: servo system
43. Horizontal fabric feeding drive method: servo system
44. Confluence drive mode: Variable-speed motor
45. Drive mode for length adjustment of the bra: servo system
46. Tension drive method: servo system
47. High-pressure suction fan: AC380V 1.1KW
48. Automatic Removal of Aluminum Foil Joints
49. Drive method: Servo system
50. Conveying method: synchronous belt conveying with baffles, selection of long/short pitch
51. The contact liquid area is made of SUS304 stainless steel.
52. 304 stainless steel mixing tank: 600L *2 units
53. Tank material: SUS 304 stainless steel
54. Liquid filling pump, liquid discharge pump (with filter), and tank transfer pump: Southern Pump CHL20-20
55. Independent electrical cabinet control system
56. Total power: The rated total power of the entire line is 15.0 kW.
57. Electrical wire requirements: National standard copper wire for wet wipe production, 6 mm²*5 cores
58. Total weight: 7000KG
