Introduction

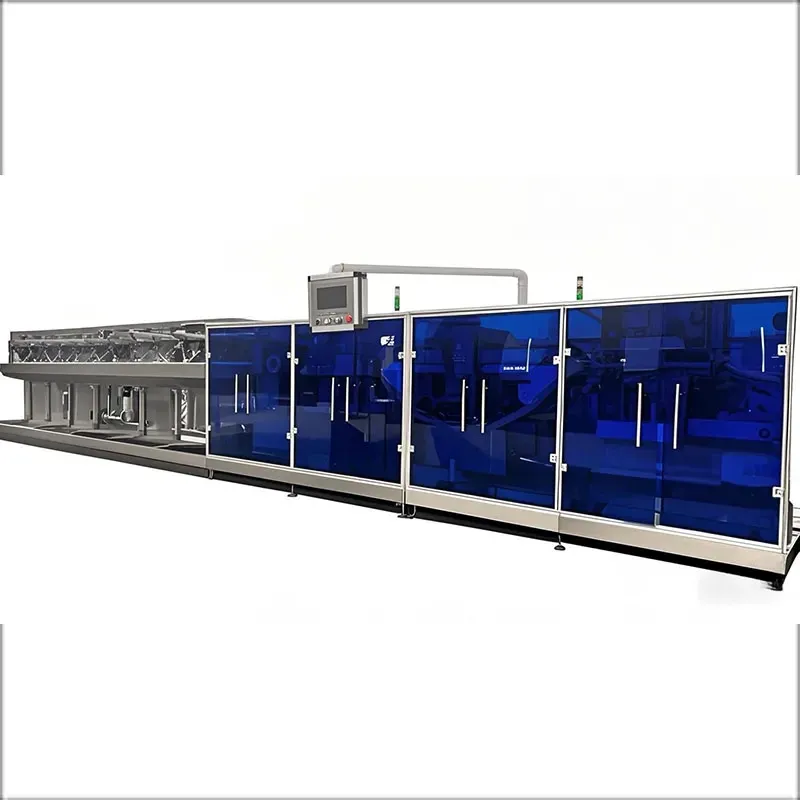

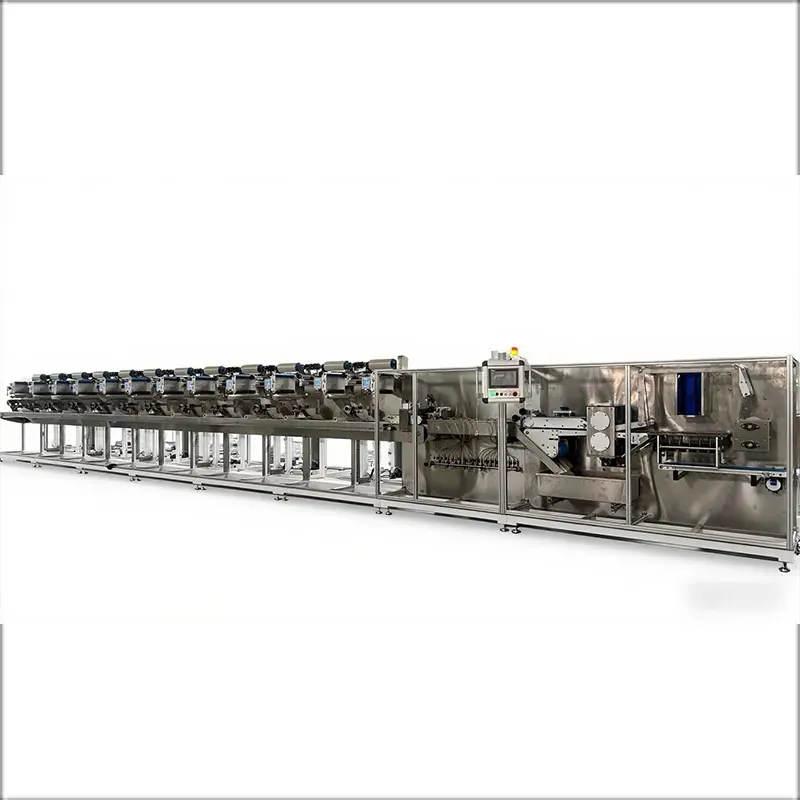

FM-SL Fully Automatic Left-Right Rolling and Automatic Feeding Wet Wiper Production Line
Left-Right Single Rolling Raw Material Unwinding and Automatic Feeding Wet Wiper Production Line
6 lanes / 8 lanes / 12 lanes / 20 lanes optional
Specifications
(I)Material Unwinding,Cutting,Folding & Wetting Device.

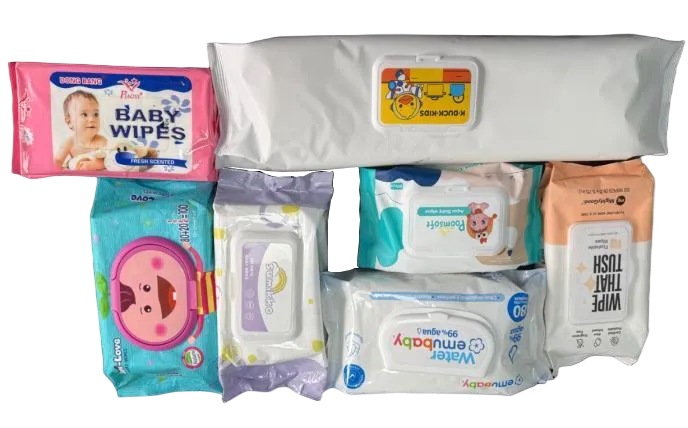

| Product Type: | Baby wipes, makeup wipes, women's wipes, cleaning wipes, kitchen wipes, pet wipes, functional wipes |
| Design Speed: | Theoretical max.800cuts/min.under four cutter conditions,actual production depends on material properties |
| Four Cutting Blades: | 450-700 Cuts/min, Cutting Length:100-150mm(corresponds to small-sized wipes). |
| Double-blade Cutter: | 400-500 cuts/min. Cutting length: 180-300mm(compatible with medium size wipes). |
| Single blade Cutter: | 100-200 cuts/min. Cutting length: 300-400mm(compatible with large size wipes like kitchen wipes). |
| Sheets/pack: | 30-120pcs/pack,through auto counting and stacking system.Support continuous adjustment without core component replacement. |
| Applicable Material: | spunbond non-woven fabric, biodegradable materials, and hot air fabric |
| Applicable Material Weight: | 35-100GSM |
| Power: | 3-Phase 380V 50HZ 15KW (industrial three-phase five-wire power) |
| Weight: | 8.5 T |
| Raw Material: | W150-300mm, Diameter 800-1200mm |
| Raw Material Rods: | 16 fixed pneumatic expansion shaft rods |
| Folding Lane: | 8 lanes |
| Folding Tool: | 8 sets (1 set per lane,folding parameters adjustable independently to support parallel production of different wipes specifications) |
| Material Rack: | 4 sets of material racks; Each set contains 1 roll on the left and 1 roll on the right (total 4 rolls per set), with two rolls in operation and two rolls as backups, supporting automatic material replacement without shutdown |
| Fabric Diemensions: | Cutting Length 100-400mm, Width 150-300mm |
| Fabric Folding Size: | L100-400*W90-150mm |
| Folding Type: | "Z", "N" |
| Counting Method: | Automatic counting; Equipped with an automatically adjustable stacking system |
| Automatic Reconnection Mechanism: | Standard non-stop automatic reconnection mechanism. When the running material is running out. It automaticallly connets with the standby roll without shutting down the machine. |
| Wetting System: | 1. Type: Quantitative liquid dispensing system with automatic dosage adjustment synchronized to host machine speed. |
| 2. Control: Liquid dosage is set via touchscreen interface. | |
| 3. Storage: Dual tanks equipped with agitators (304 stainless steel, 600L capacity). | |
| 4Pumping system: Includes return pump, liquid dispensing pump, and replenishment pump. one tank for use + one tank for solution preparation. Prevent sedimentation with blender. |
|
| Human-machine interface control: | 10-inch touchscreen,displaying equipment operating status, parameter settings, and fault alerts for simple and intuitive operation |
| Process parameter formula storage: | Supports storing and retrieving process parameter formulas, enabling quick parameter adjustments during specification changes |
| Alarm and Protection Functions: | 1. Less material alert |
| 2. Automatic shutdown upon material depletion | |
| 3. Automatic refilling (when raw materials run out) | |
| 4. Water level monitoring alerts with multi-dimensional protection features to minimize defective product generation and reduce equipment damage risks | |
| Electronic control system: | Delphi system (including motion controller and driver) + Delphi full servo motor |
| Emergency protection device: | Emergency pull-stop switch (pull rope type), arranged along the length of the equipment, allowing emergency shutdown at any position with a response time of<0.5 seconds to ensure operator safety |
| Prescription management: | Supports prescription storage and retrieval (can record prescription names, corresponding product specifications, and parameter settings to facilitate production traceability and parameter reuse) |
| Equipment demensions: | L 10.83 *W 2.3m * H 1.85m |
(II)Fully Automatic Wet Wiping Cloth Packaging Machine (FM-WF100)
(III)FM-ASD750 Robot Spider-Arm Lid Applicator Single Label Wet Wipes Packing Machine
1. What is your advantage of your company in hygiene machinery field?
A: We are professional company in hygiene machinery field, not only technical provide, but also we have management system, such like loading side, waste prevention side, and so on.
2. Why we choose you?
A: Our mission is, one station service, create value for you. We can help you to start business, from raw material to machinery, to management system.
3. What is your delivery date ?
A: The delivery date is 120 days after receiving the deposit, and receipt
of payment.
4. What is your first order payment terms ?
A: 30% deposit in advance and 70% balance before shipment.
5. Where is your factory located? How can I visit it.
A:Our factory is based in Quanzhou city,Fujian province,China
You can fly to Jinjiang air port, we will pick you up.
