Introduction

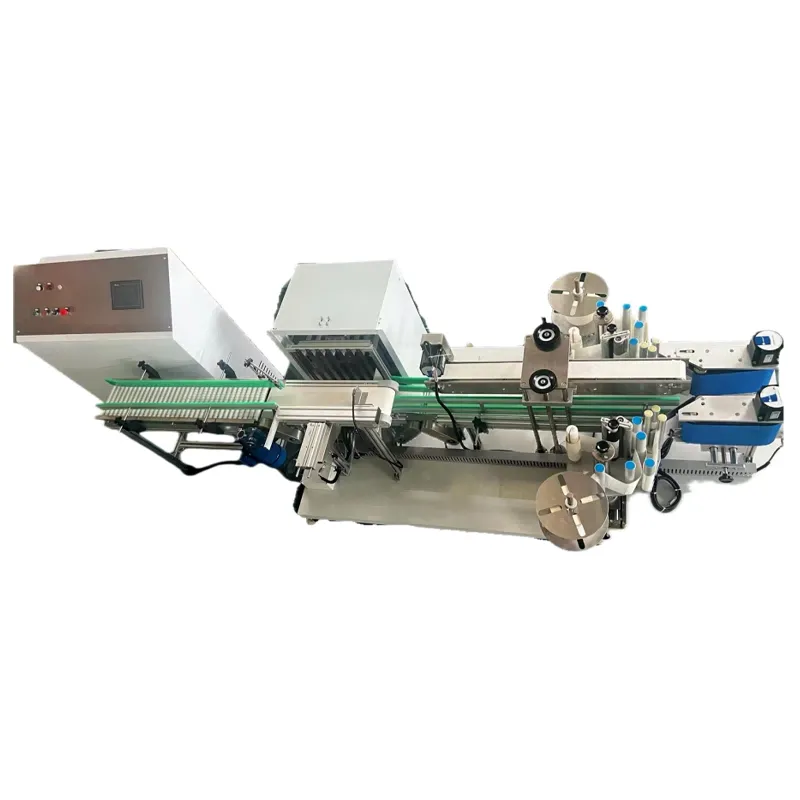

FM-TB Semi-Automatic Double Sides Labeling Machine Packing Machine
Labeling machine, semi-automactic packing production line
Applied to label 2 sides for comercial items.
Specifications
Main parameters
Design speed: 40 lifts (2 packs, 1 lift)
Production speed: 25-38 units (2 packs per unit)
Applied product width: 90MM-120MM
Applied product quantity: 2-4 packs (3 packs of 80 pieces, 4 packs of 50 pieces)
Applied product height: 120-260MM (cannot exceed the design height of 260mm)
Applied product length: 150-260MM
Label length: 120-230MM
Label width: 50-100MM
Labeling position: Mechanical adjustment of labeling height position, touch screen setting of front and rear labeling positions
Label roll diameter: outer diameter 400MM (2 bundles of labels on each side)
Gas source pressure: 0.4-0.8Mpa
Control System: Renesas (China)
Human machine interface touch screen: Lei Sai (China)
Security system: Complies with CE standards
Main features
Label one on each side of the product
Conveyor belt product conveying counting
Stacking of material receiving cylinders
Side push 1 cylinder material handling
Product conveyor belt mechanism
Upward pressure conveying mechanism
External actions of two labeling mechanisms
Scientific design, compact structure, reduced footprint, convenient operation and maintenance, one person can operate multiple units
The main components are machined by a four axis machining center machine tool, and the electrical components are branded
Human machine interface operation control
Finished product output
System features
Touch screen 7-inch
The labeling mechanism adopts servo driven positioning control
PLC control
Voltage: Three phase 380V
Total power: 3KW
1. What is your advantage of your company in hygiene machinery field?
A: We are professional company in hygiene machinery field, not only technical provide, but also we have management system, such like loading side, waste prevention side, and so on.
2. Why we choose you?
A: Our mission is, one station service, create value for you. We can help you to start business, from raw material to machinery, to management system.
3. What is your delivery date ?
A: The delivery date is 120 days after receiving the deposit, and receipt
of payment.
4. What is your first order payment terms ?
A: 30% deposit in advance and 70% balance before shipment.
5. Where is your factory located? How can I visit it.
A:Our factory is based in Quanzhou city,Fujian province,China
You can fly to Jinjiang air port, we will pick you up.
